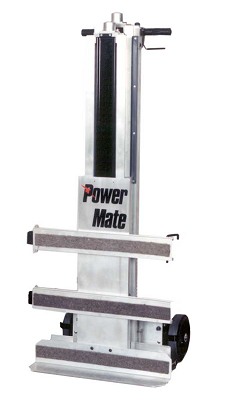

LE-1 Motorized Stair Climbing Hand Truck

PowerMate<sup>®</sup> Model #LE-1

Click to Print Click to Print
  • Fully Automatic Braking System
  • Override Clutch
  • Safety Grip Handle
  • 100% Extruded Aluminum Construction
  • Machine 24"W x 16½"D x 60" High
  • Machine Weight 184 lbs / 84 kg
  • Heavy Duty Control Switches
  • Multi-Position Strapbar 24" Length
  • Bar and Plate Felt - Protects Loads
  • Heavy Duty Reinforced Straps 10 ft. Length
  • Quick Release Safety Locking Cam
  • 2 Super Efficient Drive Screws
  • .65 Kilowatt High Efficiency DC Motor
  • Sealed Battery Pack 12V 30AMP
    Maintenance Free and Rechargeable
  • Puncture Proof Wheels 8" Diameter
  • Extruded Aluminum Toeplate 24"W
  • Solid Steel Axle 5/8" Diameter
  • Anti-Skid Protector On Heel Of Machine
  • Lifting Height 40" (101.6 cm)
  • Machine Capacity 700 lbs / 318 kg
  • OVERLOAD PROTECTION
  • SOLID STATE CONTROLLER
  • ADVANCED ELECTRONIC MICROPROCESSOR

STANDARD EQUIPMENT:
Model LE-1 comes complete with two strapbars, battery pack, battery charger, stacker unit, and wheel brakes.

MODEL  LE-1spacer40 / 40


Maximum Machine Capacity
Maximum Elevation - Front
Maximum Elevation - Rear
Weight . . . . . . . . . . . . . .
Overall   W x D x h


318 kg
1010 mm
101.6 cm
92 kg
600x540x1520


700 lbs
40"
40"
203 lbs
24x21x60

Above weights are based on qualified operators moving loads that have the weight evenly distributed all along the frame.
