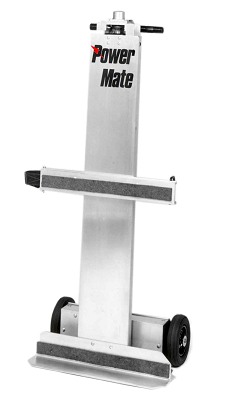

![PowerMate® Model L-1](https://www.powermate.info/hs-fs/hubfs/PowerMate_Nov2016/Images/model_l-1.jpg?width=227&height=400&name=model_l-1.jpg)
PowerMate Model L-1
- Fully Automatic Braking System
- Override Clutch
- Safety Grip Handle
- 100% Extruded Aluminum Construction
- Machine 24"W x 16½"D x 60" High
- Machine Weight 100 LBS / 45 KG
- Heavy Duty Control Switches
- Multi-Position Strapbar 24" Length
- Bar and Plate Felt - Protects Loads
- Heavy Duty Reinforced Straps 10 ft. Length
- Quick Release Safety Locking Cam
- Super Efficient Drive Screw
- .65 Kilowatt High Efficiency DC Motor
- Sealed Battery 12V 20AMP
- Maintenance Free and Rechargeable
- Puncture Proof Wheels 8" Diameter
- Extruded Aluminum Toeplate 24"W
- Solid Steel Axle 5/8" Diameter
- Anti-Skid Protector On Heel Of Machine
- Lifting Height 40" (101.6 cm)
- Machine Capacity 650 lbs.
STANDARD EQUIPMENT
Model L-1 comes complete with one strapbar, one battery and one battery charger.
ACCESSORIES
Available .. Extra Strapbar, Stove Handler Attachment, Hot Water Tank Attachment, and Charging Cord
LOADING SPECIFICATIONS |
||
|
One person |
Two people |
Above weights are based on qualified operators moving loads that have the weight evenly distributed all along the frame.

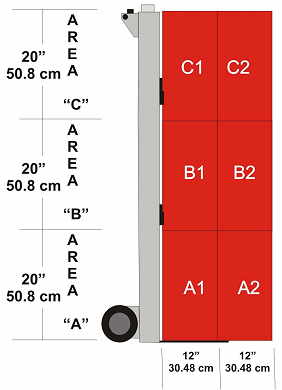

Load Area Drawing
![Load Area Drawing Load Area Drawing](https://www.powermate.info/hs-fs/hubfs/PowerMate_Nov2016/Images/load_l-1.gif?width=282&height=390&name=load_l-1.gif)
Loading Recommendation Instructions
Steps for matching loads to PowerMate models and the number of trained qualified operators required to move the loads.
- Determine the weight of the load to be moved.
- Determine where the weight is concentrated in the load. (i.e. The centre of gravity of the load)
- Using the load area drawing, determine in which area (A-1 - through - C2) the centre of gravity is located.
- Refer to the safe loading recommendation chart to determine
- whether the load can be moved safely on flat surfaces, on stairs, on and off vehicles and on and off loading docks to low bed vehicles.
- the number of operators required to safely move the load.
Safe Loading Weight Recommendations In Pounds
|
|
Safe Loading Weight Recommendations In Kilograms
|
|
