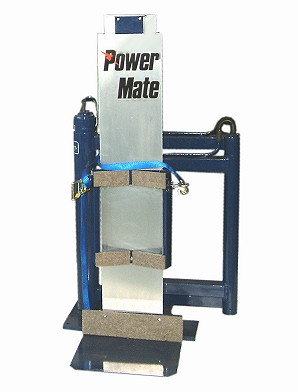

PowerMate® Model # LG-3

PowerMate® Model  #LG-3

  • Heavy Duty Steel And Aluminum Frame
  • Articulated Arm Movement For Flexible Positioning
  • Fully Automatic Braking System
  • Super Efficient Ball Screw Drive
  • End Stop Override Clutch
  • Rocker Switch (Up/Down) Operation
  • Gear Reduced Motor
  • Operates Using 12 Volt Vehicle Electrical System
  • Adjustable Strapbar And/Or Cradle Attachment
  • Load Protective Felt
  • Heavy Duty Toe Plate
  • Overall Weight 211 LBS. (96kg)

Model

LG-3 250

LG-3 500

Part Number

480113 Left Handed
480213 Right Handed

482113 Left Handed
482213 Right Handed

Lifting Height

710mm

28"

710mm

28"

Machine Capacity

113 kg

250lbs.

227 kg

500lbs.

Toe Plate Swing Distance

900mm

35 3/8"

900mm

35 3/8"

Front Foot (Excl. Toeplate) W x D

mm
660 x 343

inches
26" x 13 1/2"

mm
660 x 343

inches
26" x 13 1/2"

ACCESSORIES

Strapbar
Cylinder Attachment

Accessories

MANUFACTURED BY:

L P International INC.

US MAILING ADDRESS:

BOX 1132
Lewiston, NY  USA
14092-8132


WEBSITE: www.powermate.info

EMAIL:info@powermate.info

CANADIAN MAILING ADDRESS:

BOX 696, 151 Savannah Oaks Drive
Brantford, Ontario Canada
N3T 5P9

TEL :(519) 759-3292

FAX:(519) 759-3298

TOLL FREE:1-800-697-6283
