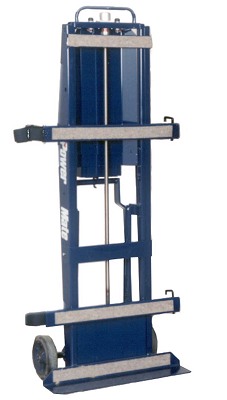

--- title: "PowerMate Stairclimbing Model #M-2C Product Specs" description: PowerMate Model M-2C product specifications pop-up --- [![Powermate](https://www.powermate.info/hubfs/PowerMate%20Nov2016/Images/logo.png)](https://www.powermate.info/home?hsLang=en-us) ## Product Information / Specifications [www.powermate.info](\) ![ PowerMate® Model M-2C](https://www.powermate.info/hs-fs/hubfs/PowerMate%20Nov2016/Images/model_m-2c.jpg?width=227&name=model_m-2c.jpg " PowerMate® Model M-2C") # PowerMate® Model M-2C - Fully Automatic Braking System - Override Clutch - Drive Screw Top Guard - Rugged Steel Outer Frame Carries Load - Machine 27"W x 17"D x 68" High - Machine Weight 185 lbs. - Heavy Duty Control Switches - Two Adjustable Strapbars 26" Length - Bar and Plate Felt - Protects Loads - Heavy Duty Reinforced Straps 10 ft. Length - Quick Release Safety Locking Cam - Super Efficient Drive Screw - .65 Kilowatt High Efficiency DC Motor - Retractable 2-Wheel Dolly - Leverage Bar - Sealed Battery 12V 28AMP - Maintenance Free and Rechargeable - Puncture Proof Wheels 8" Diameter - Toeplate 27"W - Anti-Skid Protector On Heel Of Machine - Lifting Height 48" (121.92 cm) - Machine Capacity 1500 lbs. (682 kg.) ** STANDARD EQUIPMENT** Model M-2C comes complete with: two strapbars, one 12V sealed long life battery, a battery cover, one two wheel retractable dolly, and one battery charger with auto shut-off and multi voltage feature, and one hook bar leveler. **ACCESSORIES** Hook Box, Cylinder Attachment, Charging Cord, Extended Toeplate - Depth/Width, Skid Plate, Face Plate, Big Wheel Attachment, Horizontal Support Brackets, Load Elevator, Wheel Brakes | **LOADING SPECIFICATIONS** | | | | --- | --- | --- | | Flat Surface Moving Stair Climbing Tailgate Lifting | One person 650# (295 kg.) 500# (227 kg.) 450# (204 kg.) | Two people 1500# (682 kg.) 1000# (454 kg.) 1000# (454 kg.) | Above weights are based on qualified operators moving loads that have the weight evenly distributed all along the frame. Refer to the detailed loading specification chart on the back. ###### Load Area Drawing ![Load Area Drawing](https://www.powermate.info/hs-fs/hubfs/PowerMate%20Nov2016/Images/load_m-1.gif?width=282&name=load_m-1.gif "Load Area Drawing") ###### Loading Recommendation Instructions Steps for matching loads to **PowerMate®** models and the number of trained qualified operators required to move the loads. 1. Determine the weight of the load to be moved. 2. Determine where the weight is concentrated in the load. (i.e.  The centre of gravity of the load) 3. Using the load area drawing, determine in which area (A-1 - through - C2) the centre of gravity is located. 4. Refer to the safe loading recommendation chart to determine Safe Loading Weight Recommendations In Pounds | Area Operators Required M-2C Flat surface moving Stair climbing Vehicle and dock loading | A 1 A 2 B 1 B 2 C 1 C 2 1 650 450 400 2 1500 750 500 1 500 300 250 2 1000 450 400 1 650 500 400 2 1500 1000 850 1 450 350 350 2 1000 850 800 1 500 500 450 2 800 1000 1000 1 450 400 300 2 750 700 600 | | --- | --- | Safe Loading Weight Recommendations In Kilograms | Area Operators Required M-2C Flat surface moving Stair climbing Vehicle and dock loading | A 1 A 2 B 1 B 2 C 1 C 2 1 295 204 182 2 680 340 227 1 227 136 113 2 454 204 182 1 295 227 182 2 680 454 386 1 204 159 159 2 454 386 363 1 227 227 204 2 363 454 454 1 204 182 136 2 340 363 272 | | --- | --- | Copyright © 2022 L P International Inc. / PowerMate ® 151 Savannah Oaks Dr., Box 696, Brantford, Ontario  N3T 5P9 Toll Free: 1-800-697-6283   Telephone: (519) 759-3292 Fax: (519) 759-3298   Email: [info@powermate.info](mailto:info@powermate.info?subject=PowerMate%20Product%20Inquiry) ![webtraxs](http://www.webtraxs.com/webtraxs.php?id=powermate&st=img)
