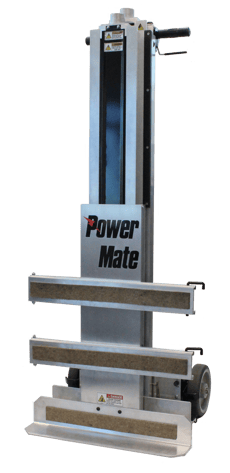

PowerMate LE-1 Stair Climbing Hand Truck

PowerMate 3-dots We love our PowerMate and you will too!

The PowerMate LE-1 is our "Stacker" stair climber and is unique in the PowerMate lineup. The LE-1 has two drive screws instead of one which provides distinct advantages for certain applications as the toe plate can move up and down along the frame.

By moving the load along the frame you change the balance of the machine. This is particularly useful for small, heavy loads like wood stoves, compressors, electric motors or barrels. The effort to move loads up stairs can then be greatly reduced with almost zero weight on the hand grips. The LE-1 also comes standard with hand operated wheel brakes which means the unit cannot roll forward unless you release the brake.

The other distinct advantage is the stacker feature of the dual drive screw design. The LE-1 has the ability to raise the load and place it on a raised surface. Again, this feature is very handy for placing wood stoves onto hearths, vending or gaming machines onto counter tops or any load that needs to be raised onto a surface.

Moving hot water heaters

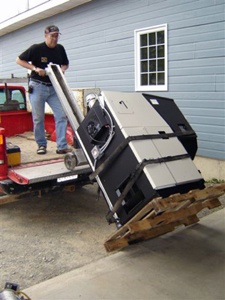

All PowerMate stair climbers have the ability to raise loads up onto surfaces, like truck beds for example. They do this by raising the wheels (which extends the frame) up onto the raised surface; from there it is simply a matter of closing the machine to bring up the load. With an LE-1 however, you can raise just the load without having to bring the PowerMate up with it.

The LE-1 has a lifting capacity of 700 lbs. and can move all the same types of loads such as appliances, hot water tanks, AC units, geothermal units, furnaces, drain cleaners and of course wood stoves, barrels, electric motors or other heavy loads. For pricing information contact PowerMate at 1-800-697-6283 or leave your contact information and a Solutions Specialist will contact you at your convenience.

The PowerMate LE-1 Advantage

  1. Manufactured to high standards, extremely reliable machine. Provides excellent value for the money as well as the lowest total cost of ownership in the industry.

  2. Four machines in one: a powered stair climber; a powered tailgate lift; a loading dock leveler and a well-balanced dolly with stacking ability.

  3. Dual Drive Screw design allows for perfect balancing of the load on the frame which further reduces the effort to move heavy loads up and down stairs.

  4. A powerful labor saving device that can help reduce costs and contribute to profitability.

  5. Stacker feature allows for placement of loads onto raised surfaces like hearths and truck beds (front load feature)

  6. Reduces property and product damage over other moving methods.

  7. Contributes to your image of professionalism.

  8. Backed by superior customer service and training.

  9. Contributes to jobsite safety, reduces injuries and claims

  10. Reduces the physical effort to move heavy loads by 87%<

  11. Heavy loads can be moved using half the labor.

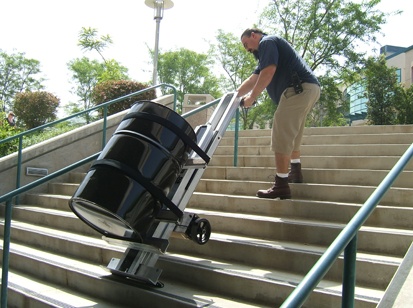

moving barrels

The PowerMate LE-1 is manufactured to high standards with extruded aluminum and no welds to fail. The battery is the best performing in the industry, utilizing a state of the art charging system. The LE-1 will move a 500 lb load up and down 20 flights of stairs on a single charge! A typical battery life is 4 -7 years.

Every consideration was given to make your PowerMate the most ergonomically friendly lifting device on the market. For example, all our operator controls are strategically positioned on the top of the machine between the hand grips.

The PowerMate LE-1 has quality features unlike any other on the market. The LE-1 has two hardened steel drive screws that are perfectly matched with the motors and batteries to provide the best combination of strength, durability and efficiency. The integrated load locking safety feature in the ball nut provides additional drive system security.

The wheels on a PowerMate lift up and out of the way reducing the overall footprint of the machine – ideal in a tight spot like narrow stairwells and landings. This feature is also why you are able to break back the load with such relative ease; with the wheels out of the way, the effort to pull the load back onto the wheels is dramatically reduced. All PowerMate stair climbers have this unique feature, including the LE-1. Once the machine and load are back onto the wheels, you are now in a well balanced position - with no effort required to keep the load that way! You can even let go of the machine at this point! Very handy on stairwells for example if you should have to open a door or even answer your phone. This is impossible with a regular hand truck and is a major advantage to owning a PowerMate.

All PowerMates are manufactured with solid state controls which reduce the draw on the battery adding to your daily operating life as well as extending the life of the battery overall. Another advantage of solid state controls (unique in the industry) is the "soft start" feature. This further increases safety by reducing sudden movements during start up resulting in the smoother operation of the machine. The new controls also make servicing and maintenance as easy as 1-2-3!

All of these quality features contribute to the lowest total cost of ownership on the market. To find out how an LE-1 can contribute to the safety and profitability of your business, call 1-800-697-6283 or leave your contact information and a Solution Specialist will contact you at your convenience.

Power tailgate lift!

The LE-1 is a powered tailgate lift eliminating the need for ramps and unlike a regular tailgate lift, the LE-1 stores inside your vehicle and can move loads right to the point of install.

Full bottom rubber guard

We understand your need to protect your clients' property and for that reason, all PowerMate stair climbers come with bottom rubber guards that are proven to protect all surfaces!

Tailgate lift feature

The LE-1 is the only PowerMate with dual drive screws that allow for the load to be balanced dynamically, during the move.

LE-1 moves small boiler

The LE-1 is ideal for moving small boilers because of its ability to 'centre balance' the load on the frame by raising the toe plate. This is a very handy feature for small but heavy loads like boilers or wood stoves.

stacker feature

The PowerMate LE-1 is purpose built for the patio and hearth industry. The ability to easily balance the load during transit and the ability to stack loads are features required by our clients in this sector - Unique to PowerMate!

Stair climber

Wood stoves are compact bottom heavy loads, just the type of weight LE-1's are designed for. The load can be centred along the frame making the effort required to operate the machine on stairs reduced - ideal for older or smaller operators.

PowerMate LE-1 Specifications

PowerMate Stacker LE-1



    • ELECTRONIC FAULT ALARM
    • FULLY AUTOMATIC BRAKING SYSTEM
    • OVERRIDE CLUTCH
    • SAFETY GRIP HANDLE
    • 100% EXTRUDED ALUMINUM CONSTRUCTION
    • MACHINE 24"W x 16½”D x 60" HIGH
    • MACHINE WEIGHT 184 LBS. / 84 KG
    • HEAVY DUTY CONTROL SWITCHES
    • MULTI-POSITION STRAPBAR 24"L
    • BAR AND PLATE FELT PROTECTS LOADS
    • HEAVY DUTY REINFORCED STRAPS 10' L
    • QUICK RELEASE SAFETY LOCKING CAM
    • 2 SUPER EFFICIENT DRIVE SCREWS
    • .65 KILOWATT HIGH EFFICIENCY DC MOTOR
    • SEALED BATTERY PACK 12V 26AMP
      MAINTENANCE FREE AND RECHARGEABLE
    • PUNCTURE PROOF WHEELS 8" DIAMETER
    • EXTRUDED ALUMINUM TOEPLATE 24"W
    • SOLID STEEL AXLE5/8” DIAMETER
    • FULL BOTTOM RUBBER GUARD
    • LIFTING HEIGHT 40" (101.6 cm)
    • MACHINE CAPACITY 700 LBS.
    • OVERLOAD PROTECTION
    • SOLID STATE CONTROLLER
    • ADVANCED ELECTRONIC MICROPROCESSOR

STANDARD EQUIPMENT:

The PowerMate LE-1 Stair Climber comes complete with two strapbars, one battery and battery charger, and wheel brakes.

ACCESSORIES:

LOADING SPECIFICATIONS


Flat Surface Moving
Stair Climbing
Tailgate Lifting

One person
450 lbs. (204 kg.)
450 lbs. (204 kg.)
350 lbs. (159 kg.)

Two people
700 lbs. (318 kg.)
700 lbs. (318 kg.)
700 lbs. (318 kg.)

Above weights are based on qualified operators moving loads that have the weight evenly distributed all along the frame.



PowerMate® Takes The
Strain Out Of Moving . .

Powerered stair climber

Power tailgate lift

Always in balance, even on stairs!

The L-1 is a loading dock leveler!

LE-1 moves copier

LE-1 fitted with Rough Terrain Cart

Do you sometimes find yourself in a tight spot?

Add a Step Extension and Pivot Pad to your PowerMate purchase!

The Pivot Pad is made of durable material which allows you to turn the PowerMate, with its load, on a dime.

Do you work in older housing stock?

The Step Extension in effect gives you that 'extra' step that you wish you had when backed into a corner on tight landings. Because the PowerMate stair climber has the ability to 'skip' a step or two, the step extension allows installers maximum flexibility when working in older housing stock that have narrow, tight stairwells.

Step Extension and Pivot Pad

The Step Extension & Pivot Pad can be used with any PowerMate stair climber.
