PowerMate Stairclimbing Handtruck

PowerMate LiftGate™ LG-3 & LG-6

PowerMate 3 dots PowerMate Interior Tailgate Lift

The PowerMate LiftGate Series of machines are Interior Lift Systems similar in function to an exterior fold down lift but with distinct advantages - and at a fraction of the price!

All LiftGates are mounted inside your vehicle out of the elements and all have a swing arm that allow you to position the load inside the vehicle and saves you from having to manhandle the load.

There are two main variations of the LiftGate, the LG-3 and LG-6. Both versions can be equipped with left or right hand mounting configuration and with two different lifting capacities. However, the LG-6 has 12 inches more lifting height than the LG-3.

The PowerMate LiftGate LG-3 interior tailgate lift is a unique solution for full size vans and Sprinter vans and has a lifting height of 28".

The LG-6 has a 40" lift and is the ideal solution for Cube Vans or Box Vans. Either LiftGate can be ordered with a 250 or 500 lbs capacity (the 250 lbs capacity LG's are slightly faster than the 500 lbs versions).

PowerMate Liftgate LG-3

Other distinct advantages to owning a PowerMate LiftGate include:

  • Reducing property and product damage by keeping the load under control during the move

  • Contributing to your professional image

  • The ability to mount LiftGate in the side door of your vehicle - perfect for curbside deliveries

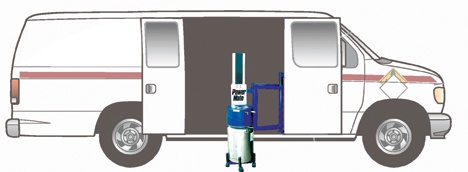

PowerMate LG-3 sidemount
  • Contributing to job site safety by reducing job site injuries and injury claims

  • LiftGates can be installed in your fleet vehicle at the time of purchase which allows the LiftGate to be financed as an operating expense instead of a capital expense.

  • The LiftGate has a small footprint at just 1.5 square feet. However, the swing arm is able to load cargo well into the truck interior, saving you aggravation and protecting your back from strain injury.

  • Right and left hand mounts are available. Installation can be completed, usually within 24 hours and for under $500, meaning very little down time for your vehicle!

  • LiftGates can be outfitted with a cylinder attachment or hot water heater attachment!

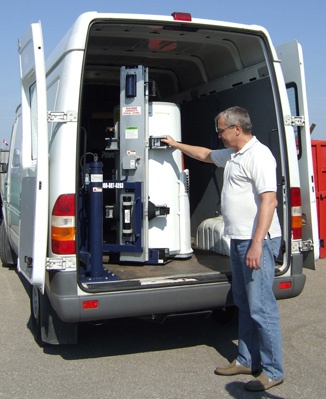

    PowerMate LG Hot Water Tank into Van
  • The LiftGate is versatile; load HVAC-R products, compressed gas cylinders, office machines, copiers and just about any load that you might find in your van.

  • LiftGates draw power directly from your vehicle's 12 volt electrical system.

  • Backed by the manufacturer! We not only provide stair climbers and LiftGates but also complete moving solutions including superior customer service and training.

  • Our 1-800 number, along with our load moving guidelines, are prominently displayed on your PowerMate. Our customer service personnel are always happy to help with on-site support.

spacer

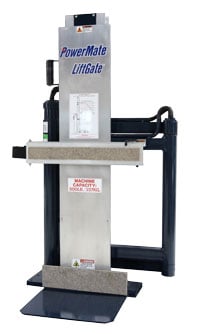

ZC00029ZP20170622

spacer

PowerMate LiftGate LG-3

The PowerMate LiftGate LG-6 has a 28" lift and is ideal for regular size & Sprinter vans.

 LG-3 Features

  • Heavy Duty Steel & Aluminum Frame
  • Articulated Arm Movement for Flexible positioning
  • Fully Automatic Braking System
  • Super Efficient Ball Screw Drive
  • End Stop Override Clutch
  • Rocker Switch (Up/Down) Operation
  • Gear Reduction Motor
  • Operates Using 12 Volt Vehicle Electrical System
  • Adjustable Strap Bar (shown above) and/or Cradle Attachment
  • Load Protective Felt
  • Heavy Duty Toe Plate
  • Overall Weight 211 lb (95.7 kg)
  • 28" Lifting Height

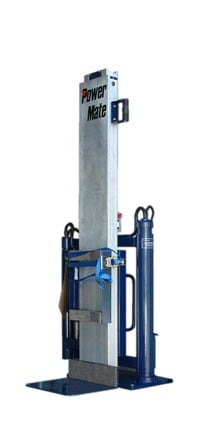

ZC00029ZP21070620d

PowerMate LiftGate LG-6

The PowerMate LiftGate LG-6 has a 40" lift and is ideal for cube vans and box trucks.

 LG-6 Features

  • Heavy Duty Steel & Aluminum Frame
  • Articulated Arm Movement for Flexible positioning
  • Fully Automatic Braking System
  • Super-Efficient Ball Screw Drive
  • End Stop Override Clutch
  • Rocker Switch (Up/Down) Operation
  • Gear Reduction Motor
  • Operates Using 12 Volt Vehicle Electrical System
  • Adjustable Strap Bar and/or Cradle Attachment (shown above)
  • Load Protective Felt
  • Heavy Duty Toe Plate
  • Overall Weight 211 lb (95.7 kg)
  • 40" Lifting Height

PowerMate LiftGate Standard Equipment:

The PowerMate LiftGate comes complete with mounting system, DC power connection kit and cradle attachment for cylinders.

PowerMate can usually arrange installation of your LiftGate locally.



Accessories available for the LiftGate:

Extra Strap Bar:
Part #480020S LH
Part #480025S RH

PowerMate LG-3 Loading Specifications


Lifting Height
Machine Capacity
Toe Plate Swing Distance
Footprint in vehicle

LG-3 (250 lbs)
710 mm or 28"
113 kg or 250 lbs
900 mm or 35 3/8"
660 mm x 343 mm

or 26" x 13 1/2"

LG-3B (500 lbs)
710 mm or 28"
227 kg or 500 lbs
900 mm or 35 3/8"
660 mm x 343 mm
or 26" x 13 1/2"

PowerMate LG-6 Loading Specifications


Lifting Height
Machine Capacity
Toe Plate Swing Distance
Footprint in vehicle

LG-6 (250 lbs.)
1016 mm or 40"
113 kg or 250 lbs
900 mm or 35 3/8"
660 mm x 343 mm
or 26" x 13 1/2"

LG-6B (500 lbs.)
1016 mm or 40"
227 kg or 500 lbs
900 mm or 35 3/8"
660 mm x 343 mm

or 26" x 13 1/2"
